Parking-Garage CO Ventilation in High-Rises: The Cross-Trade System You Plan Before Rough-In

When the garage CO system won't prove out

Picture a multi-level underground garage beneath a mixed-use high-rise — residential suites over a commercial podium. The structure is up, the slabs were poured months ago, the garage exhaust fans and motorized dampers are set, and electrical and fire alarm are well into rough-in.

Then commissioning arrives and the carbon monoxide (CO) ventilation system won't prove out. The fans energize, but the controls can't confirm the dampers are actually open. The fire alarm verifier flags that the sequence isn't behaving the way it should. The inspection becomes a deficiency — and the building is days from final inspection, with no room in the schedule to absorb a rebuild.

We've walked onto this exact scene more than once. The hard part isn't the system itself; it's that the slab was poured long ago, the conduits weren't run where they needed to be, and the only way to correct it now is to start drilling between levels and through walls to bring new conduit in — often surface-run in exterior EMT, working the problem from several sides at once. The fix is always possible; there is always a way to make it right. But once the building is closed up and time is short, it is far slower and far more expensive, and sometimes the honest answer is to redo most of it and reuse only a small part of what's there.

Why nobody owns the parking-garage CO system

The parking-garage CO ventilation system is one of the most consistently mishandled systems on a high-rise project, and the reason is structural: it sits in the seam between trades.

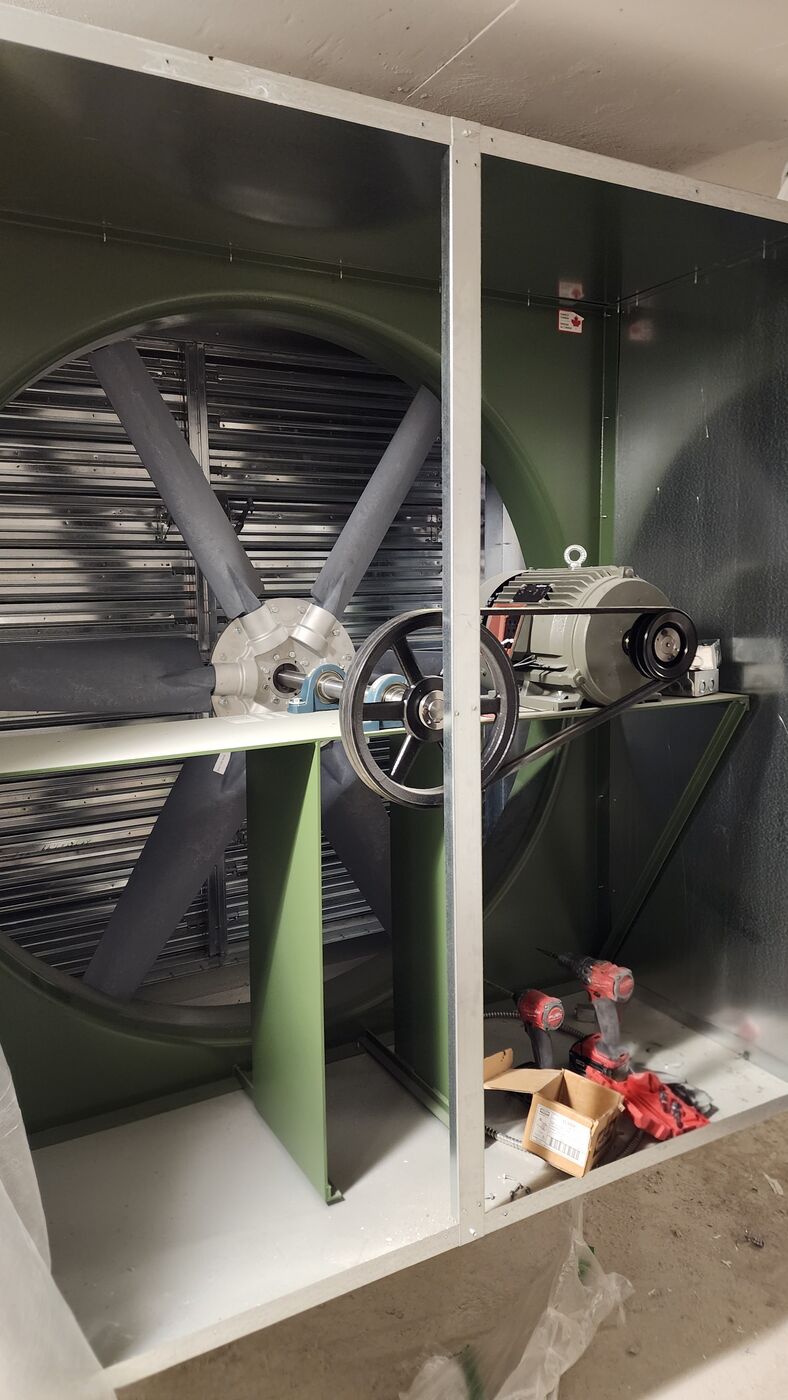

• Mechanical / HVAC supplies and sets the fans and dampers.
• Electrical powers the fans, controls the dampers, and runs the proving and signal wiring that ties it all together.
• Fire alarm has to take command of the system when there's an alarm.

Because it belongs to everyone, it ends up belonging to no one. Each trade assumes someone else handled the part in the middle — the proving contacts, the interconnection, the fire-alarm tie-in — and the gap doesn't surface until the system has to behave as a single coordinated mechanism at commissioning.

It functions as a life-safety system. It runs to clear carbon monoxide when vehicles are moving and CO climbs toward levels dangerous to people in the garage. In a high-rise, the design often ties the garage fans into the wider smoke-control and emergency-power scheme as well. That is why the sequence of operation — the defined logic of which fans run, which dampers open, in what order, and what happens on a fire alarm or a power failure — has to be locked down before anyone pulls wire. Get the sequence right on paper first and the wiring follows. Skip it and you're guessing in the field.

Two terms used throughout this article:

• Sequence of operation — the written logic defining exactly how the system behaves: what triggers the fans, which dampers must prove open first, what happens on a fire alarm, and what happens on a power failure.
• Proving (or "proof of position") — electrically confirming that a damper has actually reached the open position before the fan is allowed to do its job. This is the heart of where installs go wrong.

Separate the power, the control, and the proving

A single fan location in a garage system is really three electrical jobs, and they should not be mixed:

1. The fan motor circuit — usually a 600 V, three-phase feed to the exhaust fan motor, on its own circuit.
2. The damper control circuit — usually 120 V to drive each motorized damper.
3. The proving / contact-reading circuit — the wiring that reads each damper's position and ties the system together. Depending on the design, these contacts run at 120 V or 24 V.

Keeping these on separate, clearly identified circuits is what makes the system commissionable. When fan power, damper control, and proving signals get bundled together, every fault becomes a guessing game.

This drives a planning question that has to be answered before rough-in — and it's not just how many conductors you pull to each fan and damper, it's what type, and whether they can share one conduit or need to be split. Get that wrong and you're back to drilling and re-pulling after the concrete is closed up.

How the system is laid out, level by level

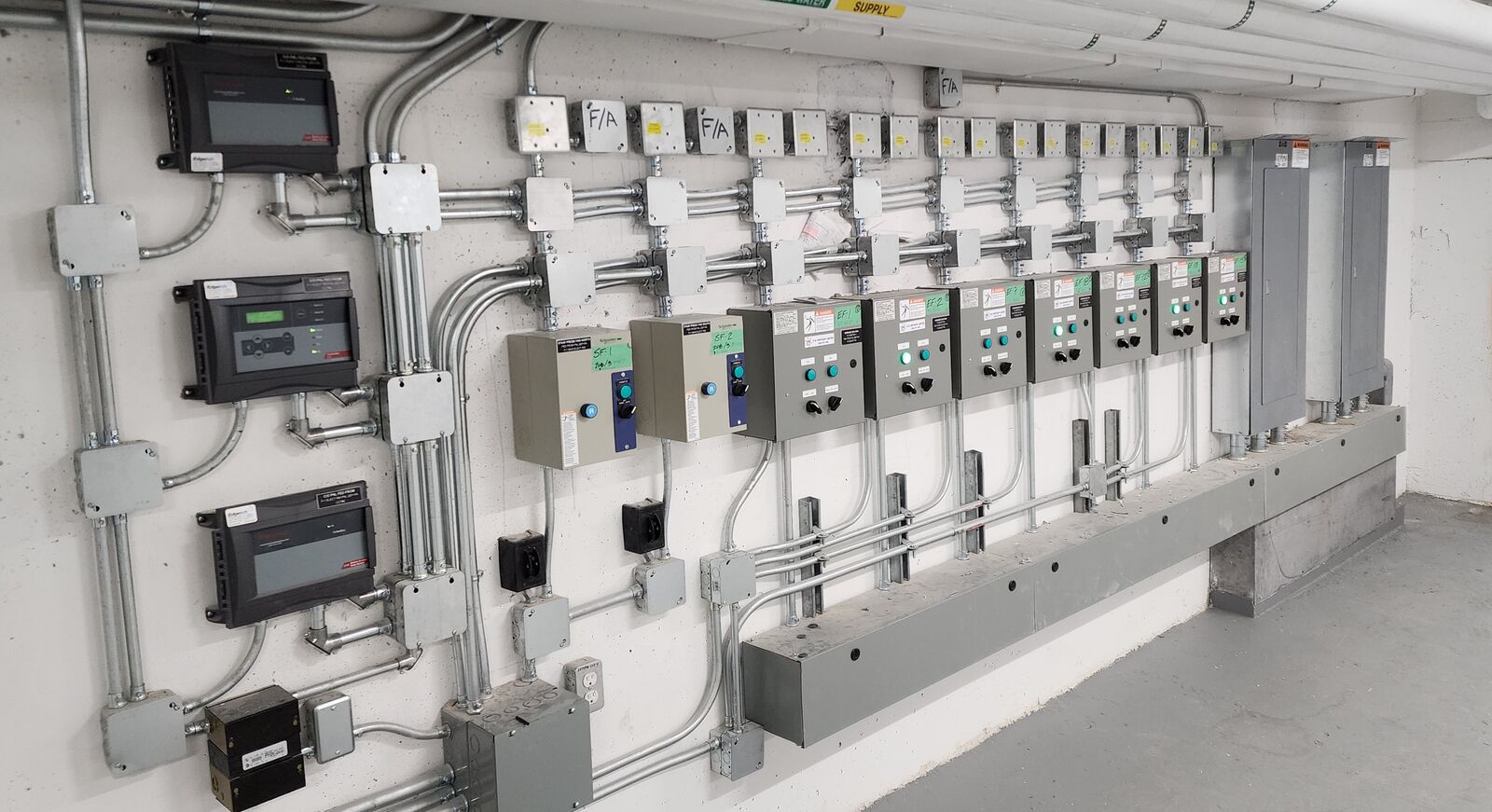

The typical architecture is one system per parking level: on each level, that level's dampers and fans are interconnected and read together. Then, at the main CO control panel, all the levels are tied together. The control panel — with its main board and relays — is the one place where everything comes home. Locating it in the electrical or mechanical room, with every contact landing there, is what lets you read all the dampers on a level at once — motor, air-intake, and air-out — and treat that level as a single mechanism.

The most common mistake: reading the wrong contact

Here is the failure we see most often, and it's worth slowing down on.

Many electricians read the damper's end switch using a normally closed (NC) contact. The intent is good — they want a signal back at the control. But the logic is backwards for a life-safety system.

You want the fan to run only when it has positive confirmation that the damper is fully open. The correct way to get that is a normally open (NO) end switch that physically closes when — and only when — the damper reaches the full-open position. "Damper proven open" should mean "this circuit is closed because the blade physically pushed the switch." Anything else means not proven, and the fan should not be moving air against a closed louver.

Read a normally closed contact instead and you invert that safety logic. Now a broken wire, a loose terminal, or a faulted circuit can read the same as the "safe" state — you lose the signal, or you read the opposite of reality. And you can't reliably patch this by dropping in a relay that flips NO to NC: the underlying problem stays, because one loose connection anywhere in that circuit can tell the starter the louvers are open and the fan is "ready to start" when the louvers are actually shut.

Then two things go wrong, in this order:

1. It's unsafe. The fan runs but no air moves, because the louver is closed. In a garage filling with CO, that's the failure that matters.
2. The motor overloads. It works hard against a sealed damper, drawing current and moving nothing. Within a few minutes the overload protection trips the starter and the fan shuts down.

Here's how it usually surfaces: months later, the property manager calls an electrician because "the fan motor keeps tripping." Everyone goes looking for a bad motor or a starter problem — when the real fault was a closed damper and a proving circuit wired to lie about it from the start. The motor was fine the whole time.

So design the proving so any fault fails to the safe state: loss of signal means "not proven open," the fan is inhibited, and the condition is flagged — never a false "all clear."

Hardwire and interconnect the dampers

The most reliable garage system is hardwired and interconnected — proving and signal wiring run with standard #14 conductors, every damper in a level's zone brought back to the central control board.

When every contact lands in one place, the system behaves as one mechanism without depending on extra software steps just to function. The opposite is what creates the commissioning nightmare. If the dampers aren't interconnected and hardwired, the fire-alarm integration becomes far more complicated — the fire alarm now has to be wired independently to every single damper location, intake and exhaust, instead of working through a consolidated point. That's a lot of additional fire-rated wiring to add after the fact.

Fire alarm controls the device directly — not through software

One principle is non-negotiable: the fire alarm controls the device directly. When there's an alarm and the sequence calls for the system to shut down or change state, that command goes straight to the damper — or straight to the VFD, if the fans are being stopped that way. The fire alarm does not route its command through a building-automation layer, and it does not read system status through one. A fire alarm is a supervised life-safety system; it acts on the hardwired device itself, right at the motor and right at the damper, so the life-safety function doesn't depend on anything else being healthy.

This is also why the order of operations matters during integration. The fire alarm's control has to be established at the device first. When other controls get wired in ahead of the fire alarm's direct connection, you end up with a system where something else can be commanding the damper or fan at the moment the alarm needs to take over — and that's exactly the conflict that shows up at commissioning. Keep the fire alarm's control closest to the device, and keep it first.

CO sensor limits and VFD cautions

Two more realities have to be planned, not discovered:

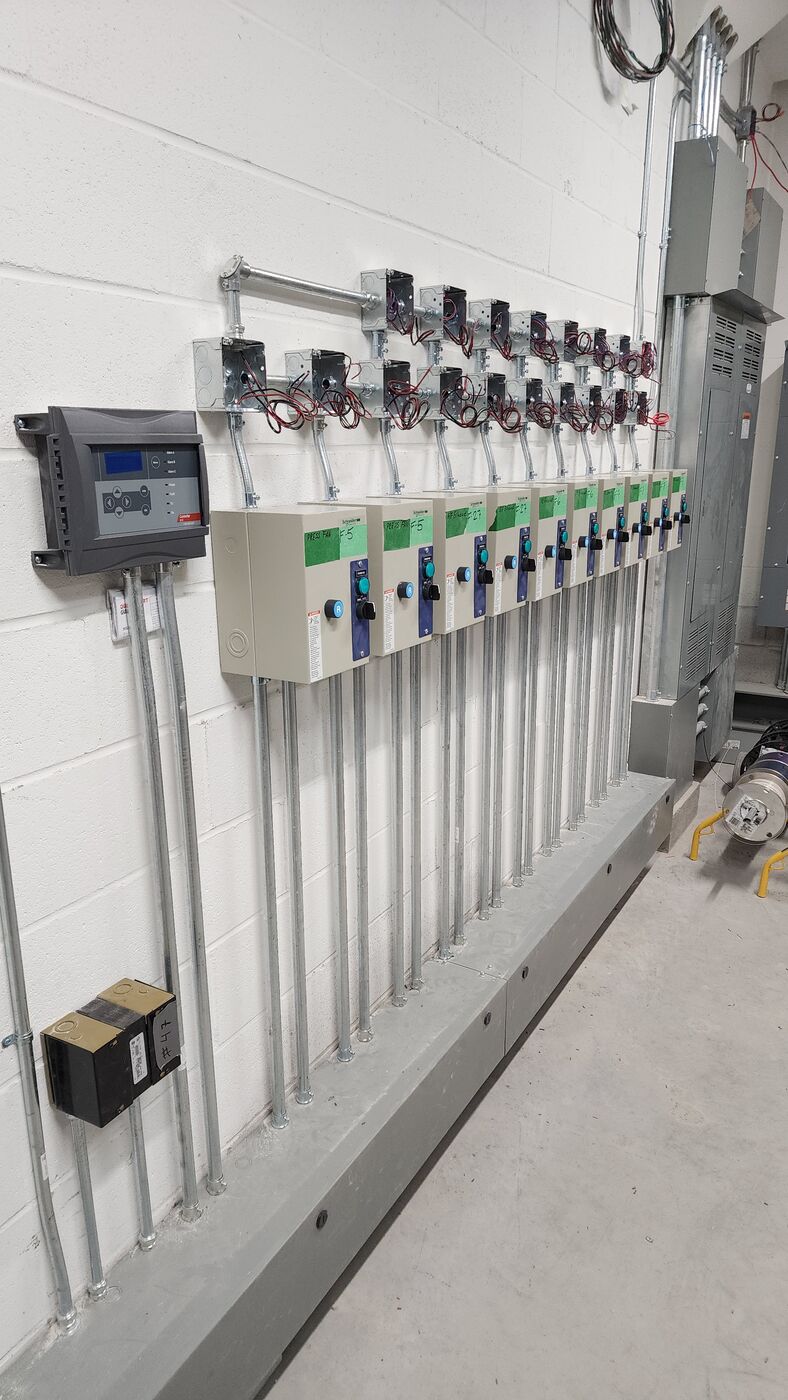

• CO detector circuit limits. Every CO detection system has a maximum number of sensors per circuit. As a rule, one circuit covers one parking level — one set of detection and control per fan zone — so a fault on one level doesn't disable detection on another. Confirm the manufacturer's device limit before you lay out the loops.

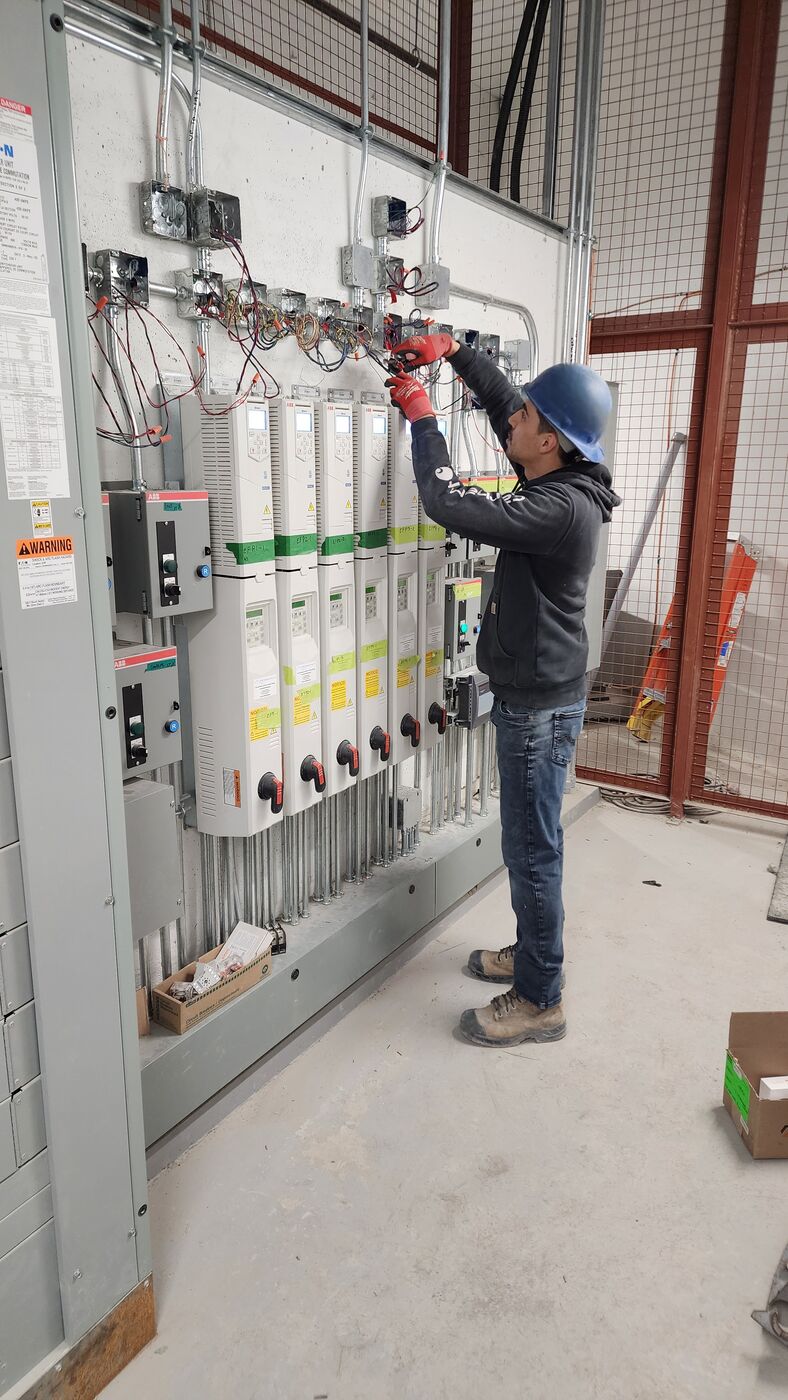

• VFD cautions. Where the fans are speed-controlled by a variable-frequency drive, the wiring is more demanding: don't mix line and load conductors, follow the drive manufacturer's wiring method, and respect the cable-length and separation limits that keep VFD power wiring away from signal wiring. Get it wrong and you risk damaging the drive and losing accurate speed control — which matters when the fan has to modulate against rising CO.

Getting the emergency power right

In a high-rise, the building's design frequently puts the garage and smoke-control fans and their dampers on emergency power. When it does, this is no longer ordinary control wiring — it falls under the emergency-power rules, and that changes the wiring method for every conductor involved.

If these fans and dampers are on the emergency system, you can't share their conductors, raceways, or boxes with general controls. The life-safety wiring stands alone, is fire-protected, and runs back through the transfer switch to the generator so it keeps working when normal power fails. This is a coordination decision made at the design table, not a field call: whether a given garage fan or damper is on emergency power is set by the building's mechanical and fire-protection design — and that determination dictates the wiring method, the raceway, and the routing. Discover it late and you're re-pulling fire-rated wire in a closed-up building.

One more detail on the supply itself: a generator serving these systems has to start automatically and pick up the load without undue delay, and that auto-transfer behaviour gets verified at commissioning — one more reason the sequence has to be settled up front.

Fail-open dampers: safety beyond the minimum

Beyond the minimum, there's a design move we make that adds real safety: where the system uses motorized dampers, we design them to fail open. This isn't a code requirement for garage ventilation — it's our engineering choice, and the reasoning is simple. A motorized damper lets you pick the failure direction. Designed to open on loss of power or control, the airflow path stays available when something goes wrong rather than sealing shut. In a garage where cars are running, an open path on failure is safer than a closed one — if anything in the chain breaks, the system errs toward clearing CO, not trapping it.

That philosophy matters even more for stairwell pressurization, a separate life-safety system in the same building. By smoke-control design those dampers fail open: on loss of power the damper opens so the fan can pressurize the stair with clean air and keep smoke out in a fire. Pressurization fans also start on any alarm, so their control logic is simpler — but the install still lives or dies on the end switches being read correctly and enough conductors being pulled to the starters. On sites we've inherited, the HVAC installer didn't know the intended failure direction and the electrician hadn't pulled enough wire to read the end switches. The system isn't complicated. It only becomes complicated when a few steps are missed while the walls are still open and the fire-rated duct shafts aren't yet boarded.

Define the stages and the alarm response before you wire

The system's staging has to be known before rough-in, because it changes both the wiring and the programming:

• How many fans, and which areas does each cover?
• How many fans run at once? How many dampers?
• Are the dampers normally open or normally closed?
• Is the ventilation two-speed (high/low), or does it modulate continuously based on the CO level in the garage?

And the one that catches people: when there's a fire alarm, what is the garage ventilation supposed to do? In most buildings the system stops on alarm — but not all; in some the requirement is the opposite, and the system keeps running or shifts to a venting role. You cannot assume. That "what happens on alarm" answer isn't a field decision — it has to be defined on paper as part of the design, with every fan and damper accounted for. That documented sequence is your wiring spec and your commissioning script; if it doesn't exist yet, that's the first thing to get from the engineer, not the last.

In our experience, accommodating different alarm scenarios is usually only a programming difference if the wiring was done right — the conductors stay the same and the change is small. Plan the wiring for it and you're never trapped by it.

The approach that keeps these projects out of trouble

The approach that keeps these projects out of trouble is consistent. On a new building, we build the plan first, then work out how to execute it:

1. Get the approved sequence of operation from the engineer, before rough-in.
2. Separate the circuits — 600 V fan power, 120 V damper control, 120 V or 24 V proving — and identify them.
3. Hardwire and interconnect every damper on a level back to the central control board; tie the levels together at the panel.
4. Read proof-of-position with normally-open end switches, so any fault fails to "not proven."
5. Bring the fire alarm's control directly to the damper or VFD, and establish it first.
6. Run the emergency-power wiring independently per OESC Section 46 wherever the building's design requires it.
7. Design dampers to fail open where permitted, for safety beyond the minimum.

The result is a system that proves out cleanly, passes ESA inspection and fire-alarm verification the first time, and actually moves air when a garage fills with CO.

What gets missed

The mistakes here are rarely about competence on any single trade. They're about the seam:

• A relay that "converts" the signal looks like a fix but leaves the unsafe failure mode in place.
• A proving circuit wired with the wrong contact passes a quick test and then fails quietly months later — usually showing up as a "bad motor" that's really a closed damper.
• "We'll sort the fire-alarm integration at the end" only works if the dampers were interconnected at the beginning.

This is also where the engineer and the ESA plan review earn their keep. These systems are designed by engineers, and in Ontario the electrical plans are examined before the work proceeds — on a phased project, each phase's plans are examined before that phase starts. If something like the sequence of operation is thin or missing, the engineer can resolve it, but only if the questions get asked early. So ask them: how many fans run together? Which dampers fail which way? What happens on alarm? Are these fans on emergency power? Those answers belong on paper before rough-in, where they're cheap — not at commissioning, where they're not.

A note for property managers of existing buildings

If you manage a high-rise where the garage CO system already exists, the work is different from new construction — the building is occupied, the walls are closed, and the system has been running for years. The procedure we follow is straightforward:

1. Agree the sequence of work with the engineer and get it approved.
2. Evaluate what's actually installed, then build a plan around it.

From there the execution mirrors a new build, adapted to what we find — safely, and without disabling the protection that's there while the work is underway. Every site is different, and a retrofit always has to be adjusted to existing conditions, so we treat existing-building remediation as its own subject rather than fold it into new-construction advice. One thing worth knowing: modifying an integrated life-safety system can re-trigger integrated testing of the whole — which is exactly why this isn't work to hand to a generalist to touch one piece in isolation.

Built to prove out the first time

The garage CO system isn't difficult electrical work. It becomes difficult only when the planning and the wiring sequence are missed while the building is still open. What makes it reliable is understanding the whole system — fire alarm, electrical, controls, and the mechanical equipment it serves — and knowing exactly where the responsibility splits between trades and where it has to come back together.

The garage CO ventilation is one of the building's life-safety systems, and where these systems are integrated they have to prove out together, not just each on its own — the garage fans responding on alarm while the stair and elevator-vestibule pressurization do their part. Our role on a high-rise is to install, wire, and integrate the system to the engineering drawings and the documented sequence of operation, so that when the independent verification and integrated-testing companies arrive, it's already compliant and passes the first time. We work alongside those companies through commissioning, and because we've built the system end to end, we can resolve anything they flag on the spot. The integrated testing itself — required by the Ontario Building Code under CAN/ULC-S1001 — is carried out by a separate, qualified party, independent of the trades that installed the systems; that's exactly the system we prepare for them to sign off.

That cross-trade understanding is what we bring to a project. We sit in the seam between the fire alarm, the electrical, and the mechanical scope, hold the engineer to a clear sequence of operation, and make sure the system is wired once, correctly, from the start. When it's planned that way, commissioning is uneventful — which is exactly the point for a system whose only job is to keep people safe in a parking garage.
