You're adding an EV charger to your Toronto-area home. The standard answer you'll often hear: "You'll need a 200 A panel upgrade before we can install it." For some homes that's the right call. For many it isn't — and the Ontario Electrical Safety Code has a specific rule that lets a licensed electrician check before you spend the money.
A panel upgrade is a real service that solves real problems. We do them regularly. But for an EV charger installation alone, on a working 100 A panel that hasn't given you any trouble, an upgrade often isn't required at all.
The situation
You want a Level 2 charger — a Tesla Wall Connector, a ChargePoint, or another 48 A unit. You ask for a quote in the GTA. After a look at your 100 A panel and existing breakers, the standard answer comes back:
"You need to upgrade to 200 A first. That's $4,000 to $6,000 before we start your real project."
For some Toronto homes, that's the correct answer.
For many, it isn't.
What the Ontario Electrical Safety Code actually says
The Ontario Electrical Safety Code contains a rule that lets a qualified person — meaning a licensed electrical contractor — use demonstrated load instead of a theoretical worst-case calculation when sizing a service for new loads.

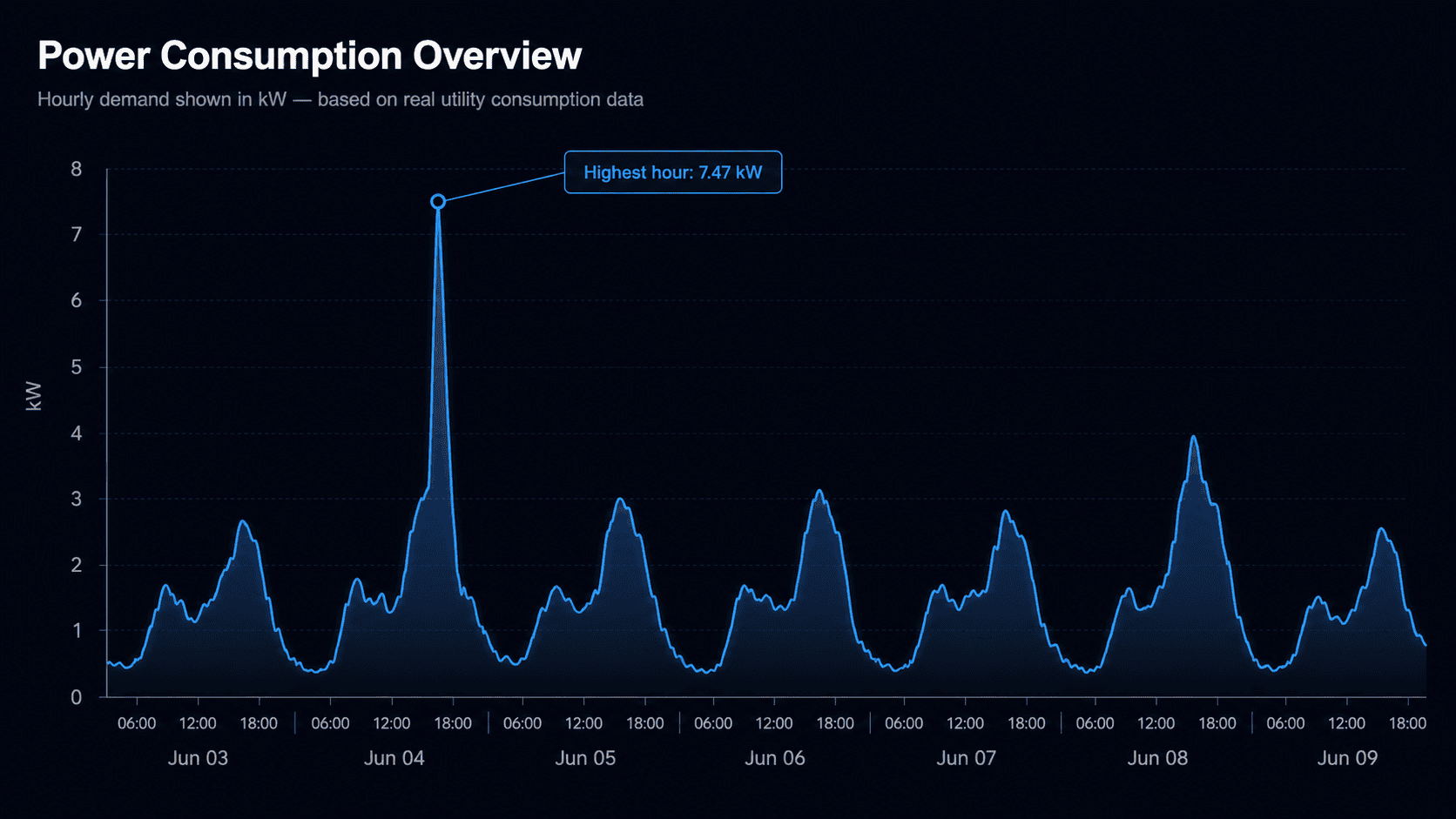

In plain terms: instead of assuming your home uses every appliance at full power simultaneously (which never happens), a qualified electrician can look at what your home has actually drawn over the past 12 months. Toronto Hydro, Alectra, Hydro One, and other Ontario LDCs record your hourly electricity consumption. That measured data is the foundation of the calculation.
The result is almost always lower than the conservative "code calculation." Often dramatically lower.
The Electrical Safety Authority published Bulletin 8-3-15 specifically to explain this method for dwelling-unit services.
Rule 8-106 9), supported by ESA Bulletin 8-3-15. In Ontario, this rule is unchanged from the Canadian Electrical Code (CSA C22.1) and applies to all dwelling-unit service and feeder calculations province-wide.
Why this matters for an EV charger installation
A typical Toronto home with a fully loaded 100 A panel — central AC, electric dryer, electric range, maybe a hot tub — looks "maxed out" on paper. The traditional load calculation will tell you a service upgrade is required before you can add a 48 A EV charger.
The demonstrated-load method tells the real story:
- Your home does not draw maximum current on every circuit at the same time
- Your actual peak hour over the past year shows the real capacity you have available
- A licensed electrician can use this measured headroom to add the charger without changing your service
In our experience across Toronto, Mississauga, Brampton, Vaughan, Richmond Hill, Markham, and the rest of the GTA, most 100 A homes have meaningful capacity available — often enough to add a 48 A EV charger without any service upgrade at all.
What if there isn't enough headroom?
There's a second tool recognized by the code: an EV Energy Management System (EVEMS), commonly called a load management system. Section 86 of the OESC permits these systems to be used in place of a service upgrade for EV charger installations specifically.
A load management system monitors your home's total consumption in real time and reduces the EV charger output when the rest of the house is drawing heavily. When the rest of the house is quiet — overnight, when you're charging anyway — the charger gets full output.
The most efficient version is dynamic load management, which adjusts continuously based on whole-house demand rather than simply switching the charger on and off. Full charging speed almost all the time, no risk of overloading your service.
Combined with a demonstrated-load calculation, this means a 100 A service can often support an EV charger that, on paper, would have required 200 A.
When a panel upgrade IS the right call
Panel upgrades are a service we do regularly, and there are clear situations where they're the right answer — not a workaround. Consider an upgrade if any of the following apply:
- You're planning future additions on top of the EV charger — a heat pump, a hot tub, a basement suite, an electric range swap
- Your panel is genuinely full and you want real capacity, not just enough for one more circuit
- You want to install two EV chargers — one for each vehicle — running at full speed simultaneously
- You charge at peak hours and the home is already heavily loaded, and you don't want a load management system throttling the charger
- Your panel has insurance flags, aluminum-wired branch circuits, a stab-lok or fuse box, or signs of age that make the upgrade worth doing on its own merits
- You're renovating anyway, and the upgrade makes sense as part of a larger project
- You want long-term future-proofing and have the budget for it
If any of those describe your situation, an upgrade is a sound investment and we're happy to do it.
When you probably don't need one
If your panel is working without issues, has no insurance flags, no signs of age, and you're adding a single EV charger with no other major loads in the foreseeable future — there's a good chance you don't need to spend $4,000 to $6,000 on an upgrade just to charge your car.
The way to know for certain is a demonstrated-load calculation per Rule 8-106 9). Without that, "you need an upgrade" is a guess.
What the standard answer leaves out
A service upgrade is sometimes the right answer. It should never be the default answer without checking first.
How Actus Electric handles this for our clients
When you hire us for an EV charger installation in Toronto or the GTA, our process includes:
- Pull your hourly consumption data from your utility (Toronto Hydro, Alectra, Hydro One, etc.) with your authorization
- Calculate your demonstrated load per Rule 8-106 9), documented in writing for the ESA permit
- Determine the actual capacity available on your existing 100 A or 200 A service
- Present your real options — direct connection, dynamic load management, or service upgrade — with the reasoning for each
- Give you the honest answer, even when that means a smaller job for us
The load calculation is included at no extra charge when you hire Actus Electric for the installation. It's part of the project — there's no separate fee.
If you'd like an on-site consultation and calculation as a standalone service — to verify another electrician's quote, or to plan a future project before you've decided to proceed — contact us for the current consultation fee. If you go ahead with the work through us afterward, that fee is credited toward the project cost.
The bottom line
A panel upgrade in the GTA typically runs $4,000 to $6,000. If you genuinely need one — for the reasons listed above — it's money well spent. If you don't, it's money you could put toward the charger, a faster unit, or the next project on your list.
The Ontario Electrical Safety Code provides a documented, code-compliant method for using your home's real consumption data to find out which situation you're in. If you've been told that you need a service upgrade before an EV charger can be installed, ask whether Rule 8-106 9) demonstrated-load calculation was considered. If the answer is no, get a second opinion before you spend the money.
Spend on the work that helps you. Skip the work you don't need.
If you've determined that a panel upgrade IS the right call for your situation, learn more about our panel upgrade service — we handle the full process including ESA permits, utility coordination, and same-day completion in most cases.
Find out if you need a panel upgrade — before you pay for one.
When you hire Actus Electric for your EV charger installation, the demonstrated-load calculation per Rule 8-106 9) is included as part of the project. Standalone on-site consultations are also available — contact us for the current fee.
